Carbon Fiber Plate Insert: Threaded Insert Design for Composite Structures

Introduction

Every carbon fiber plate insert begins with a simple question: how do you attach a bolt to a material that cannot be tapped like metal? Carbon fiber reinforced polymer (CFRP) plates are strong in their fiber direction but weak in the through-thickness direction, so a conventional tapped hole fails quickly — the first 20-30 thread engagements strip or the laminate delaminates under fastener preload. The engineering answer is a carbon fiber threaded insert: a metal sleeve bonded or mechanically locked into the laminate that carries the fastener load and distributes it over a larger bearing area. A well-chosen CFRP plate insert converts a fragile composite surface into a durable threaded interface, and it is the standard composite structure fastener for every application that needs repeated assembly.

This article is a design guide for carbon fiber plate inserts. We cover the insert types available, how pull-out strength and torque capacity are calculated, the installation methods that work in thin composite plates, and the failure modes that every designer should design against. The goal is to give structural and mechanical engineers the data they need to specify threaded inserts for CFRP plate structures with confidence, whether the application is a drone fuselage, a robotics arm, or an automotive bracket.

Carbon Fiber Plate Insert Types

The carbon fiber plate insert market is dominated by a few proven designs, each with a distinct load path. The choice between them depends on plate thickness, whether the back face is accessible, and the magnitude and direction of the applied load.

Insert Type	Installation	Best For	Pull-Out Strength	Typical Use
Bonded threaded insert (potting)	Adhesive-bonded into a drilled hole	Thin plates 2-8 mm, no back-face access	Medium, adhesive-dependent	Drone arms, camera mounts, enclosures
Flanged or counterbore insert	Adhesive-bonded with a flange on the surface	Visible assemblies, repeated torque	High, flange spreads load	Robotics, panels, inspection covers
Through-bolt with insert or nut	Fastener passes through the plate	Thick plates, highest loads	Highest, mechanical lock	Structural brackets, suspension links
Molded-in or co-cured insert	Laminated into the layup during cure	Production parts, no drilling	Highest, integral bond	Aerospace panels, serial production

Bonded threaded inserts are the workhorse of the industry because they require no back-face access and work in thin plates. The insert is placed in a drilled hole filled with structural adhesive — typically a two-part epoxy — and the adhesive transfers the fastener load into the laminate. Flanged variants add a mechanical surface bearing that increases pull-out resistance and prevents the insert from sinking into a soft laminate under torque. For the highest loads, a through-bolt with a recessed nut bypasses the insert entirely and transfers load directly through the plate.

Pull-Out Strength and Torque Limits for Plate Inserts

Designing a carbon fiber plate insert means sizing the insert so that its pull-out strength and torque capacity exceed the service loads with a safety factor. Pull-out strength depends on the bond area (insert outer diameter multiplied by laminate thickness), the adhesive shear strength, and the laminate's interlaminar shear strength, since the insert fails when either the adhesive or the laminate itself gives way.

• Bond area governs: Increasing insert length in the laminate raises pull-out strength almost linearly. A typical bonded M4 insert in a 3 mm CFRP plate carries roughly 500-900 N pull-out; the same insert in a 6 mm plate carries 1,200-2,000 N.
• Adhesive selection matters: A structural epoxy with 25-35 MPa shear strength is the baseline. Lower-cost cyanoacrylates should be avoided for structural inserts because they are brittle and creep under sustained load.
• Torque limits are lower than pull-out: A bonded insert typically withstands 2-5 N-m of tightening torque before the adhesive or laminate fails, depending on size. Specified assembly torque should never exceed roughly 60-70% of the insert's ultimate torque capacity.

A practical sizing rule is to select an insert whose outer diameter is at least twice the bolt diameter and whose length is at least 2.5-3 times the bolt diameter, then verify by test on a representative coupon. Because CFRP laminate properties vary with fiber architecture and resin, datasheet values should be treated as starting points, not guarantees.

Installation Methods and Process Control

The reliability of a carbon fiber plate insert depends more on installation quality than on the insert design itself. Poor hole preparation, incomplete adhesive coverage, or uncontrolled cure conditions are the most common causes of premature insert failure, and all are preventable with a disciplined process.

• Hole preparation: Drill with a carbide bit at controlled feed to avoid delamination at the hole exit. Diameter should be sized to the insert's recommended clearance, typically 0.1-0.2 mm oversize for adhesive film.
• Surface treatment: Lightly abrade the hole wall with fine sandpaper or a rotary abrasive and clean with solvent or isopropyl alcohol. This raises bond strength by 15-30% compared with an untreated hole.

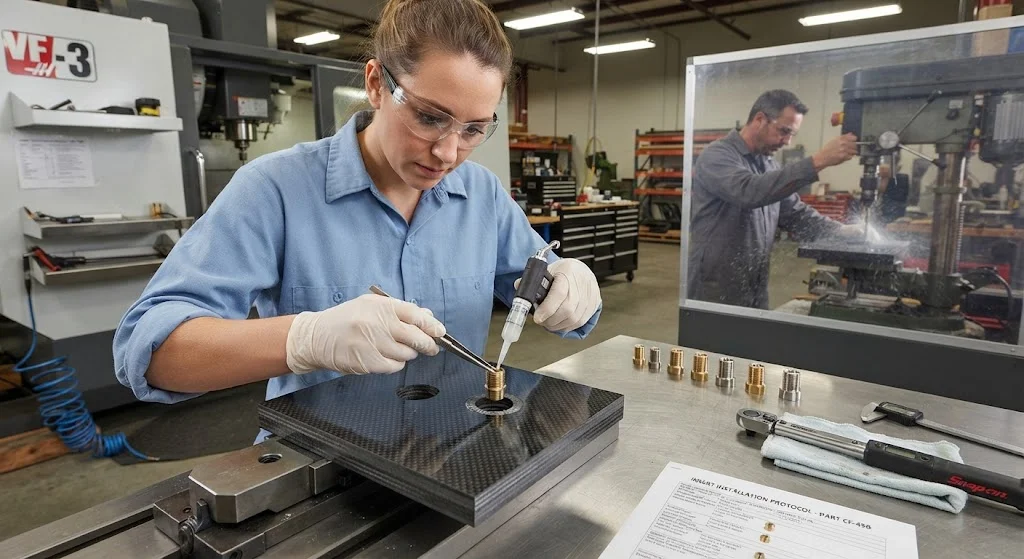

• Adhesive application: Apply epoxy to both the hole wall and the insert. A thin, uniform film avoids air pockets that become failure initiation sites.
• Cure control: Follow the adhesive manufacturer's cure schedule — most structural epoxies need 24 hours at room temperature or 2-4 hours at 60-80°C. Parts should not be torqued until full cure.

For production environments, consider molded-in inserts, which eliminate drilling and bonding variability entirely by laminating the insert into the plate during cure. This raises cost but delivers the most repeatable insert performance, which is why co-cured inserts are the default in aerospace panels.

Failure Modes to Design Against

Every carbon fiber plate insert has a characteristic set of failure modes, and designing against them starts with knowing which one is likely to dominate in your application. The four most common failure modes are:

• Adhesive shear failure: The bond between insert and laminate lets go under axial load. Prevent by sizing the bond area and using a qualified structural epoxy.
• Laminate delamination: The plate splits between plies under fastener preload or pull-out force. Prevent by adding a local doubler, increasing thickness, or using a flanged insert that spreads the load.
• Insert spin-out: The insert rotates in the hole under torque when the adhesive bond is insufficient. Prevent by using a flanged or keyed insert and verifying torque capacity.
• Thread stripping: The insert's internal threads strip under repeated assembly. Prevent by selecting stainless steel or titanium inserts with adequate thread engagement (at least 1.5 times bolt diameter).

Designers should also consider environmental factors. Moisture absorption softens the epoxy matrix and can reduce insert pull-out strength by 10-20% in saturated laminates, and temperature extremes affect both the adhesive and the laminate. If the application sees sustained elevated temperature or humidity, test the insert design in the actual service environment rather than at ambient conditions.

Testing and Qualification

Because CFRP properties are process-dependent, a carbon fiber plate insert design should be verified with a small test program before production. A representative coupon series — typically 5-10 samples per configuration — gives the pull-out strength, torque capacity, and failure mode data needed to set assembly torque and safety factors.

• Pull-out test (ASTM D7332 or similar): Pulls the insert axially from the laminate while recording peak load and failure mode.
• Torque-out test: Applies increasing tightening torque to the insert and records the torque at which the insert spins or the laminate cracks.
• Repeated assembly test: Tightens and loosens a bolt to the specified torque for 25-50 cycles and checks for insert migration or torque loss.

Document the test results and keep the coupons as a quality reference. When production starts, periodic torque audits on the assembly line catch process drift — a loose or over-torqued insert is the first sign that installation control has slipped.

Frequently Asked Questions

Can I tap carbon fiber plate directly instead of using an insert?

Direct tapping of CFRP is possible but rarely advisable. The laminate's through-thickness strength is only a fraction of its in-plane strength, and a tapped hole in a thin plate provides very little thread engagement — typically one or two threads in a 3 mm plate — which strips under any meaningful load. The thread itself also acts as a stress riser that promotes delamination. Inserts solve both problems by providing a metal thread with full engagement and a load path that distributes force into the laminate. Direct tapping is only reasonable for very light, non-structural fixings, and even then a bonded insert is usually more reliable.

What adhesive should I use for bonding carbon fiber plate inserts?

Use a two-part structural epoxy formulated for composite bonding, with a minimum lap shear strength of 20-25 MPa and good toughness. Marine-grade epoxies such as those used in boat building are a practical choice because they are moisture-resistant and well characterized. Avoid quick-setting cyanoacrylates and general-purpose epoxies for structural inserts — they are brittle, creep under sustained load, and can degrade in humid environments. For high-temperature or aerospace applications, specify an epoxy qualified to the relevant aerospace specification and follow its cure schedule exactly.

How much pull-out strength can I expect from a bonded insert in a CFRP plate?

As a rough guide, a bonded M4-M6 insert in a 3 mm carbon fiber plate provides 500-900 N of axial pull-out strength, while the same insert in a 6 mm plate provides 1,200-2,000 N. Flanged inserts add 20-40% on top of these values by spreading load across the laminate surface, and through-bolted configurations are higher still. These figures assume a properly prepared hole, a structural epoxy, and a quasi-isotropic laminate; actual values depend on fiber volume fraction, resin system, and plate thickness, so they should be confirmed by coupon testing for critical applications.

Conclusion

Carbon fiber plate insert design is a solvable engineering problem once the fundamental constraint is understood: CFRP is strong in-plane but weak through the thickness, so fasteners need a metal insert that distributes load over a large bond area. Bonded threaded inserts handle most applications in 2-8 mm plates, flanged variants add pull-out and torque resistance, through-bolts cover the highest loads, and molded-in inserts give the most repeatable performance in production. Size the insert from the bond area, keep assembly torque below 60-70% of capacity, control the installation process, and verify with coupon testing — and composite plate structures will survive years of assembly cycles.
